1996 Zagato Raptor

Pictures and Specifications

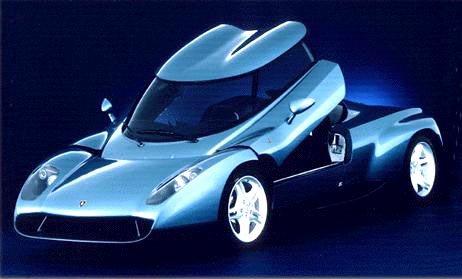

1996 Zagato Raptor picture
Click on above picture to view wallpaper-size picture.



Performance
Top Speed 205.1 mph / 330 kph 0-60 mph 3.9 seconds
Skidpad Not Available 0-100 mph Not Available
EPA City / Highway Not Available 0 - Mile Not Available
Drag Coefficient Not Available 0-100-0 mph Not Available
Slalom Not Available Stopping Distance Not Available

General Information
Base Price [concept] Production prototype only
Powertrain Layout Mid Engine / 4WD Steering Not Available
Body Material Aluminium Alloy & Composite Panels Front Wheels Not Available
Brake Type Not Available Rear Wheels Not Available
Brake Size F: Not Available
R: Not Available
Front / Rear Tires 245/35ZR-18 / 335/30ZR-18

Engine
Configuration Lamborghini V-12 Displacement 5,707 cc / 348.3 cu-in.
Valvetrain DOHC 4 valves / cylinder Bore 3.43 in. / 87.0 mm
Power 492.0 bhp @ 7,000 rpm Stroke 3.15 in. / 80.0 mm
Torque 427.8 ft-lb. @ 5,200 rpm Compression Ratio 10.0:1
Redline Not Available Final Drive Ratio Not Available
Transmission Not Available Gear Ratios Not Available

Dimensions
Wheelbase 104.3 in. / 2,650 mm Length 172.4 in. / 4,380 mm
Front Track 61.8 in. / 1,570 mm Width 79.5 in. / 2,020 mm
Rear Track 64.6 in. / 1,640 mm Height 43.1 in. / 1,095 mm
Weight Distribution Not Available Curb Weight 2,976 lb. / 1,350 kg
