1965 Ford GT40 Mk1

Pictures and Specifications

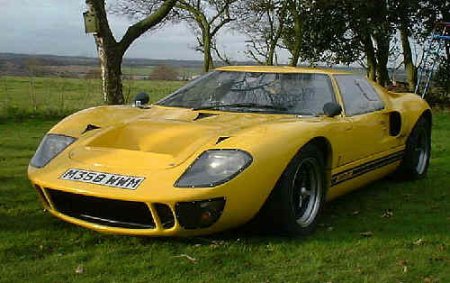

1965 Ford GT40 Mk1 picture
Click on above picture to view wallpaper-size picture.



Performance
Top Speed 197.0 mph / 317.0 kph 0-60 mph Not Available
Skidpad Not Available 0-100 mph Not Available
EPA City / Highway Not Available 0 - Mile Not Available
Drag Coefficient Not Available 0-100-0 mph Not Available
Slalom Not Available Stopping Distance Not Available

General Information
Base Price Not Available Production Not Available
Powertrain Layout Mid Engine / RWD Steering Rack & Pinion
Body Material Not Available Front Wheels Not Available
Brake Type Discs Rear Wheels Not Available
Brake Size F: 11.5 in. / 292 mm
R: 11.5 in. / 292 mm
Front / Rear Tires Not Available

Engine
Configuration V-8 Displacement 4,736 cc / 289.0 cu in.
Valvetrain OHV Bore 4.02 in. / 102.0 mm
Power 390.0 bhp @ 7,000 rpm Stroke 2.87 in. / 72.9 mm
Torque 325.3 ft-lb. @ 5000 rpm Compression Ratio 12.5:1
Redline Not Available Final Drive Ratio 3.09:1
Transmission 5-speed Manual Gear Ratios 2.42:1, 1.47:1, 1.09:1, 0.96:1, 0.85:1

Dimensions
Wheelbase 95.0 in. / 2,413 mm Length 165.0 in. / 4,191 mm
Front Track 53.9 in. / 1,371 mm Width 70.0 in. / 1,778 mm
Rear Track 53.9 in. / 1,371 mm Height 40.5 in. / 1,028 mm
Weight Distribution Not Available Curb Weight 1,834 lb. / 832 kg
